Venus Optics added the Canon RF mount option to 3 of their new ultra-wide cinema lenses; the Laowa 9mm T2.9 Zero- D, Laowa 15mm T2.1 Zero-D Cine Lens, and Laowa 12mm T2.9 Zero-D. All three lenses feature the same optical system as the rest of the mounts and with the same close-to-zero distortion (Zero-D) design. They are also built with robust cinema lenses housing. The new RF variants will be a very interesting wide-angle option for Red Komodo, Canon EOS R5 / R6, and the new Canon C70 cinema cameras.

Photo Credit Phil Holland

Ultra-Wide FoV & Fast Aperture

All three Laowa cine lenses feature an ultra-wide angle of view and fast aperture. The 9mm T2.9 features an approximate 113° FoV on Super35 sensors while the 15mm T2.1 and 12mm T2.9 feature a 110° and 122° FoV respectively on cameras with full-frame sensors. The fast maximum t-stop is well suited for filming under low light conditions. It also allows filmmakers to have more flexibility in depth of field control.

73CE0C2D F3FB 46E6 A1A7 9FBD5FF5E1E9

Close-to-Zero Distortion

All 3 lenses feature the distinguishing Laowa close-to-zero distortion (Zero-D) design where the optical distortion at infinity distance has been compressed to the minimal. This is extremely important for motion picture recording when shooting indoor, architecture, or footage with straight lines included. This also saves a tremendous amount of time in distortion correction in post-processing.

941D1710 3B58 449A BCEF DB5F538B37EC

Compact & Lightweight

All three wide-angle prime lenses are extremely compact and lightweight. The 9mm weighs only 0.5 lbs (226g). The 15mm is around 1.2 lbs (540g) and the 12mm is around 1.49 lbs (675g). On the contrary to the huge and heavy wide-angle lenses in the market, the new Laowa cine lenses are extremely handy for run-and-gun productions, shooting with gimbals, FPVs, in-car shots, aerial videography, underwater videography etc.

Laowa 9mm 1

Close Focusing Distance

All three Laowa cine lenses possess an extremely close focusing distance. This provides a great deal of flexibility for directors to compose shots at any distance. Filmmakers can also take advantage of this close focusing to create some wide-angle shots with shallower depth of field. The 9mm can focus as close as 4.7” (12cm) while the 12mm can focus up to 7.09” (18cm), from sensor to subject. The 15mm instead can focus up to 5.9” (15cm).

109CE964 A8E9 4B57 944B D991E41AC9DB

Industry-Standard Cinema Lens Housing

The major difference between the new cinema version and the still version is the improved housing. The new cinema lens housing has been designed with details to facilitate filmmakers to shoot with ease. Both the aperture and focus rings have been built with industry-standard 0.8 mod pitch gears for pairing up with follow-focus motors. The aperture ring is now click-less for smooth iris control. Every one of Laowa cine lenses comes with a filter thread for filmmakers to use screw-in filters and mini matte-boxes. The entire lens body is made by premium grade aluminum and build for usage in an extreme environment.

Hassle-Free Transportation

An authentic hard case made by Pelican will be included with the lens to allow filmmakers to travel around for shooting with ease.

Laowa PELICAN

A Variety of Mount Options

The 9mm T2.9 Zero-D Cine is also available in Fuji X, Sony E mount, and Micro Four Thirds mount.
The 15mm T2.1 Zero-D Cine is also available in Sony FE mount.
The 12mm T2.9 Zero-D Cine is also available in EF, PL, Sony FE mount.

Laowa Cine Lenses

Laowa Wide Angle Cine Lenses line-up

Venus Optics currently offers four wide-angle cine lenses for cinema cameras with different sensor sizes.

Pricing & Availability

All three cine lenses are currently available to purchase via Venus Optics official website (https://www.venuslens.net/) and authorized resellers. The US price for 9mm T2.9 is $599/pc (ex-VAT), $1,199/pc (ex-VAT) for 15mm T2.1 and $1,499/pc (ex-VAT) for 12mm T2.9. Pricing varies in different countries.

Adorama | B&H | Amazon

Product Shots

9mm T2.9 Zero-D

12mm T2.9 Zero-D

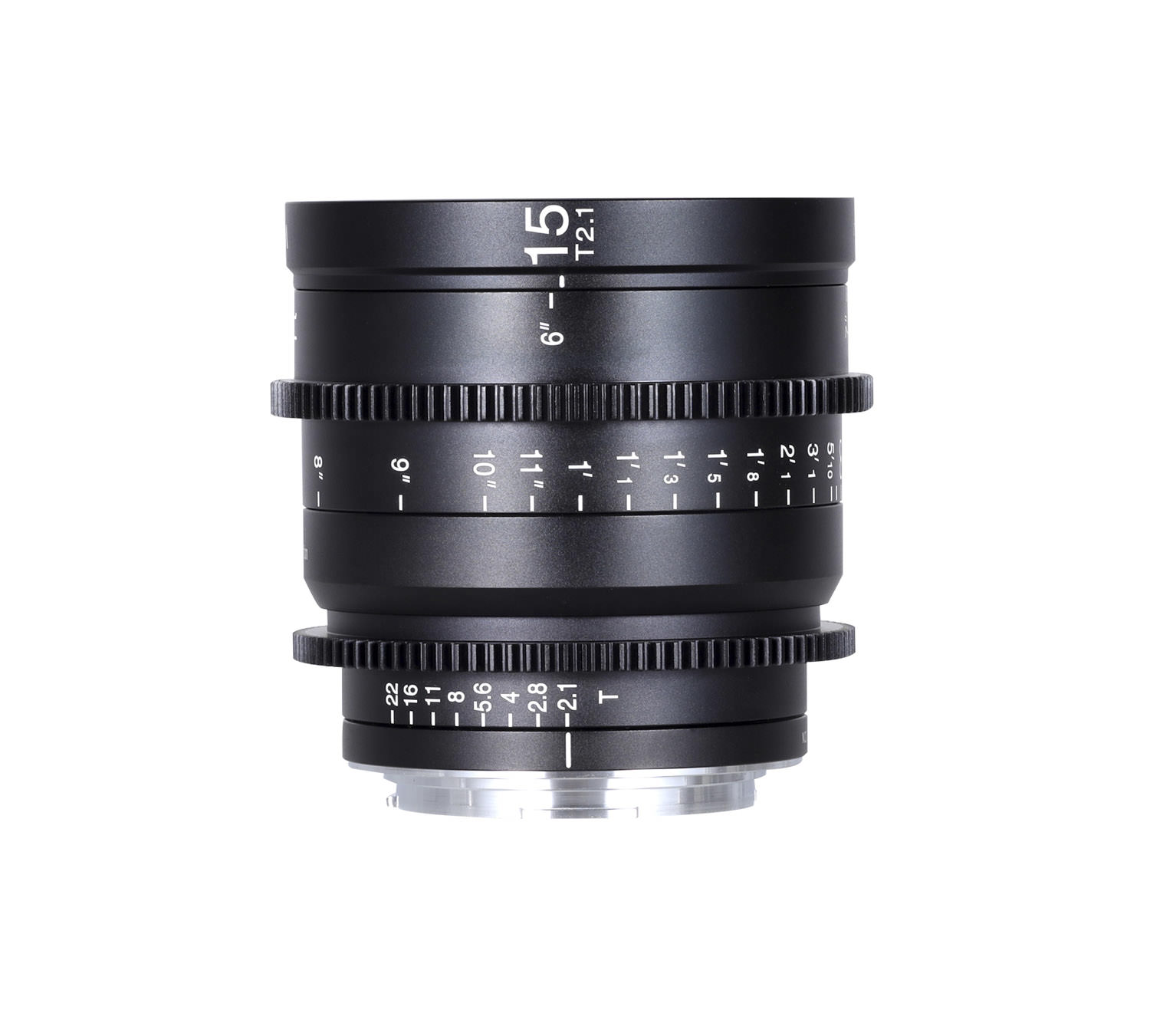

15mm T2.1 Zero-D

Technical Specifications

9mm T2.9 Zero-D

15mm T2.1 Zero-D

12mm T2.9 Zero-D

Focal Length

9 mm

15mm

12mm

Max. Aperture

T2.9

T2.1

T2.9

T-Stop

2.9-22

2.1-22

2.9-22

Angle of View (Approx.)

113o (Super35)

110o

122 o

Format Compatibility

Super 35

Full Frame

Full Frame

Image Circle

28mm

43.3mm

46.7mm

Lens Structure

15 Elements in 10 Groups

12 Elements in 9 Groups

16 elements in 10 Groups

Iris Blade

7

5

7

Min. Focusing Distance

12 cm

15 cm

18 cm

Filter Thread

55 mm

77 mm

95 mm

Front Diameter

58 mm

80 mm

100 mm

Focus Mode

Manual Focus

Manual Focus

Manual Focus

Dimension (W x H)

62.4 x 54 mm

84.8 x 91.2 mm

105 x 100mm

Weight

247 g

540 g

675g

Mount

Canon RF, M43, Fuji X, Sony E

Canon RF, Sony FE

Canon RF, Canon EF, PL, Sony FE

Price (Ex. VAT)

US $599

US $1,199

US $1,499

Sample Footage (Some footages were NOT taken with the RF mount)

9mm T2.9 Zero-D Cine:

15mm T2.1 FE Zero-D Cine:

12mm T2.9 FE Zero-D Cine:
